The Aaben, Hulme

A PRS housing development for housing association One Manchester, comprising 85 apartments and 20 townhouses.

(Mecanoo Architecten bv.)

  Date:  Complete June 2018 (estimate)   Stage:  WS3 - 6 (JCT DB 2016)   Value:  £12m  Co-ordinated the post-novation design services (WS3+ to WS6). Acted for the practice as the sole Manchester-located personnel for the project, liaising with contra

Date: Complete June 2018 (estimate)

Stage: WS3 - 6 (JCT DB 2016)

Value: £12m

Co-ordinated the post-novation design services (WS3+ to WS6). Acted for the practice as the sole Manchester-located personnel for the project, liaising with contractor, client (PM) and project team - the architectural production team were based at practice HQ in the Netherlands.

  Coloured external elevations

Coloured external elevations

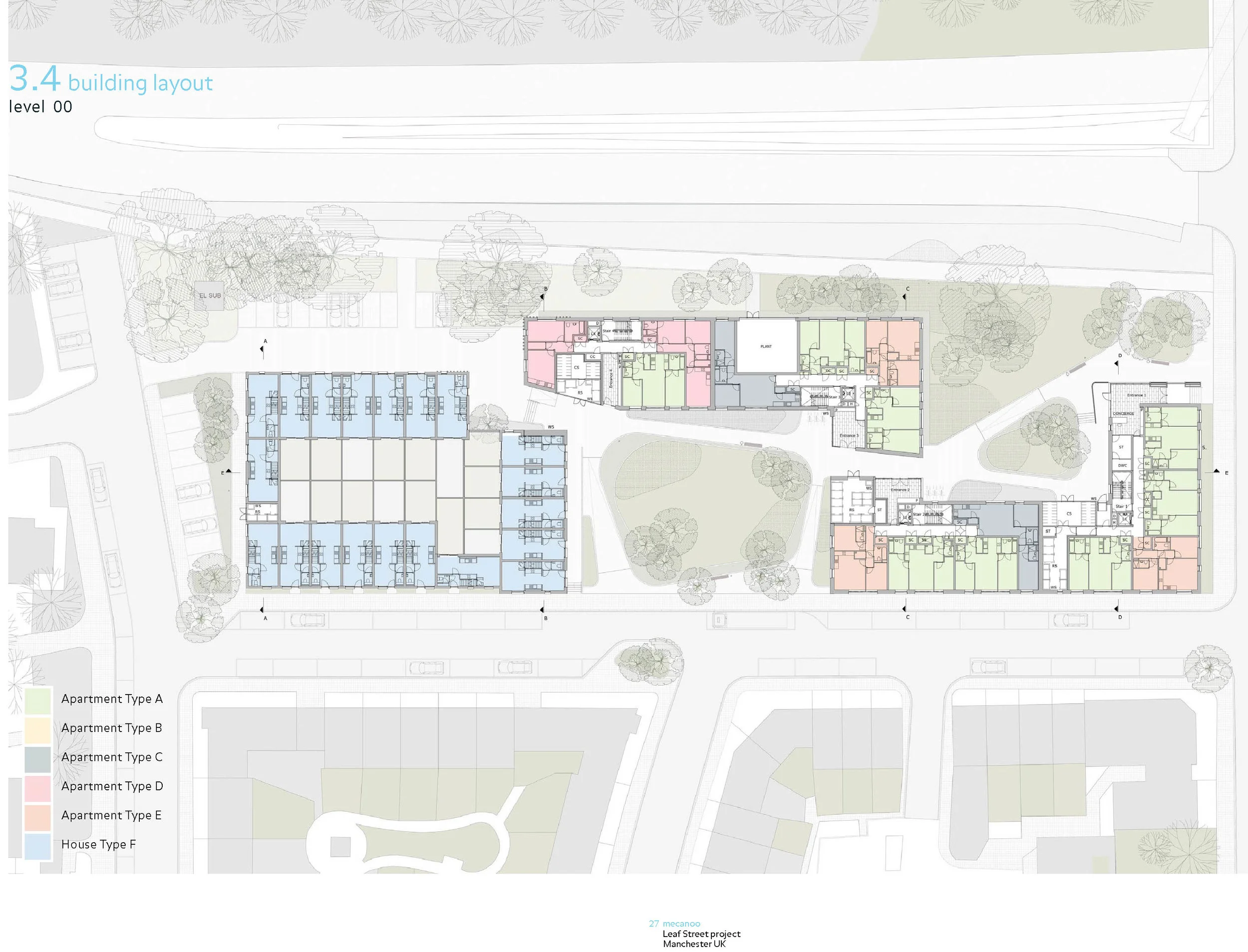

  Ground Floor & Site plan

Ground Floor & Site plan

  Impression  - aerial view

Impression - aerial view

  General Arrangements drawing  - Apartments Ground Floor plan   View drawing

General Arrangements drawing - Apartments Ground Floor plan

View drawing

  Internal partition strategy  - Ground Floor plan   View drawing

Internal partition strategy - Ground Floor plan

View drawing

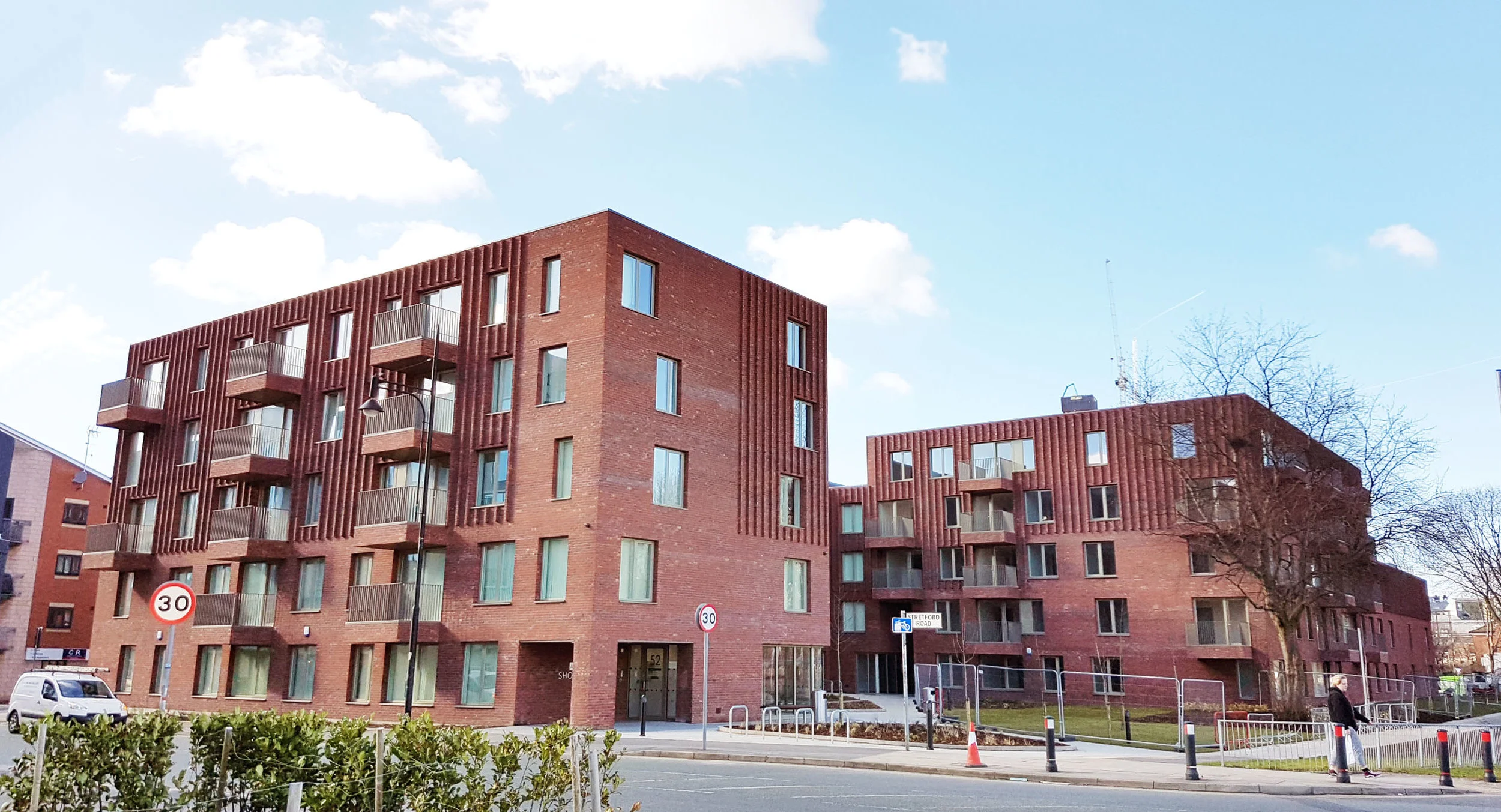

  Completed facade to Stretford Road

Completed facade to Stretford Road

  Typical detail  - apartment external walls

Typical detail - apartment external walls

  Typical detail  - apartments-townhouses transition point with undercroft

Typical detail - apartments-townhouses transition point with undercroft

  Typical detail  - Townhouse external wall junction with external levels

Typical detail - Townhouse external wall junction with external levels

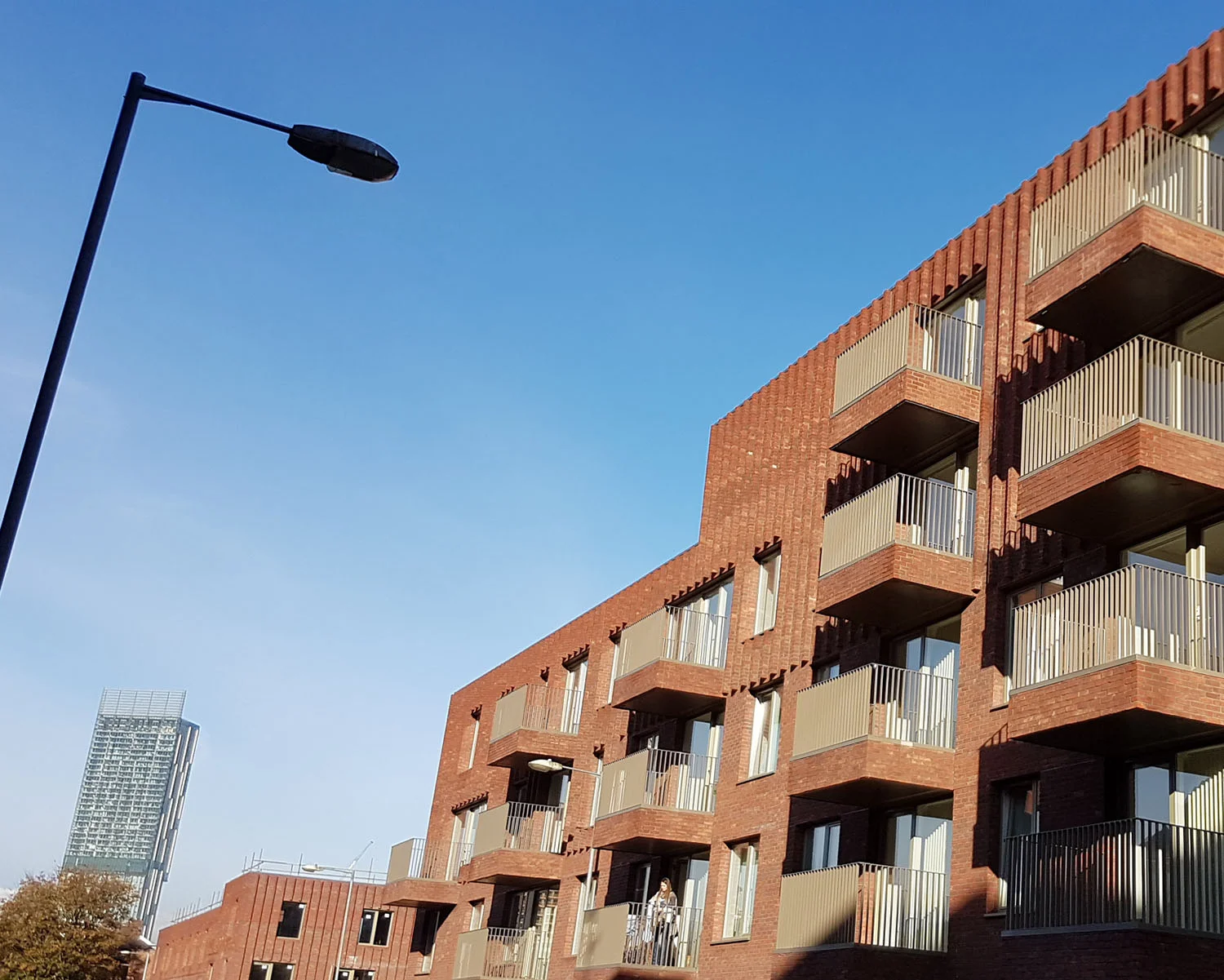

  Completed facade to Leaf Street

Completed facade to Leaf Street

  Window schedule  - working drawing   View drawing

Window schedule - working drawing

View drawing

  Impression  - night view

Impression - night view

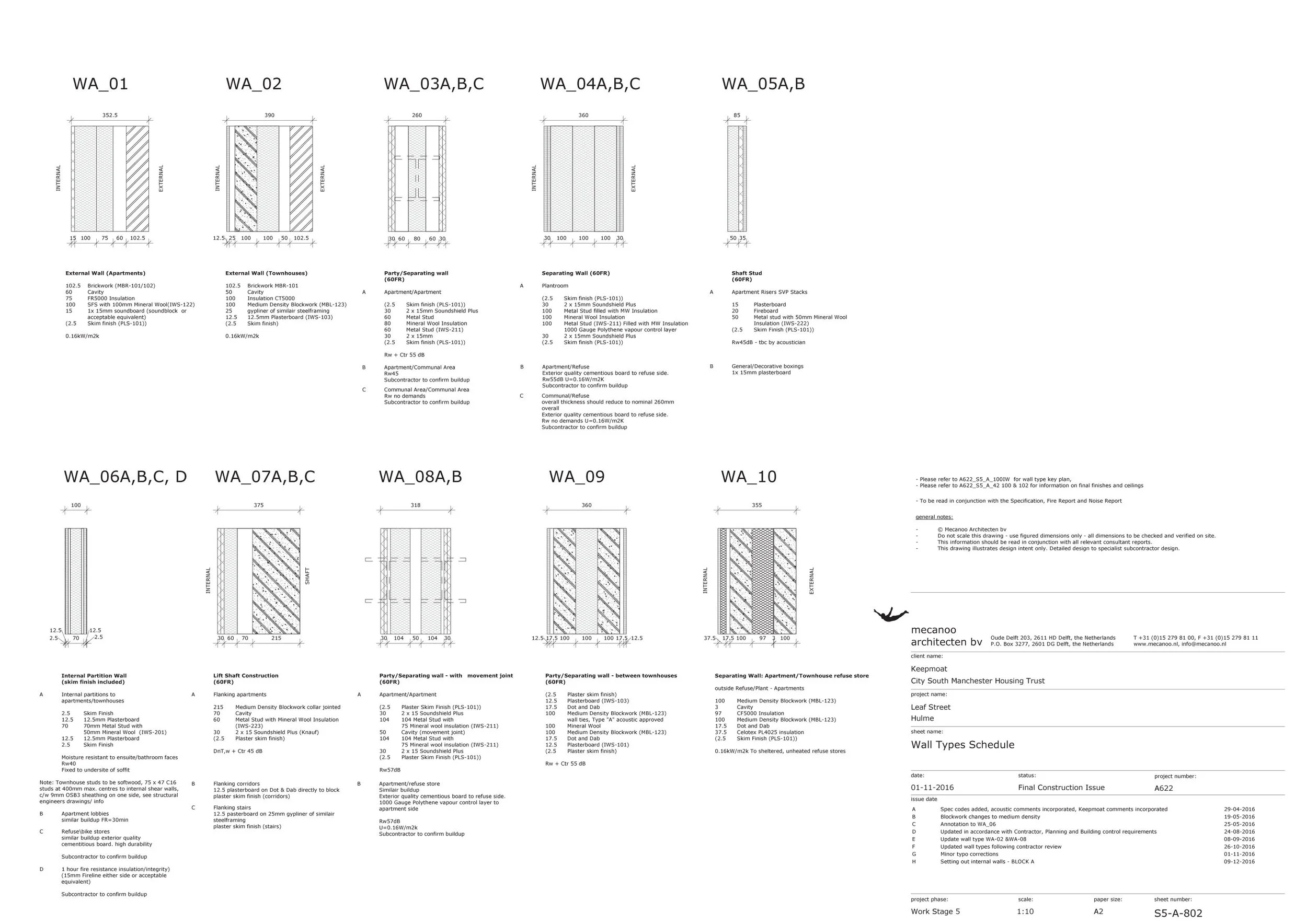

  Wall types schedule  - working drawing   View drawing

Wall types schedule - working drawing

View drawing
